The disposable endoscopic linear cutting stapler is a passive surgical instrument mainly used for cutting and anastomosis operations in endoscopic surgery.
100% Safe
24/7 Support
Support OEM/ODM
Medicine service
It can perform various operations during the surgical process, reducing interference and risks during the operation.The disposable endoscope linear cutting stapler is a common passive surgical instrument with a wide range of clinical applications.

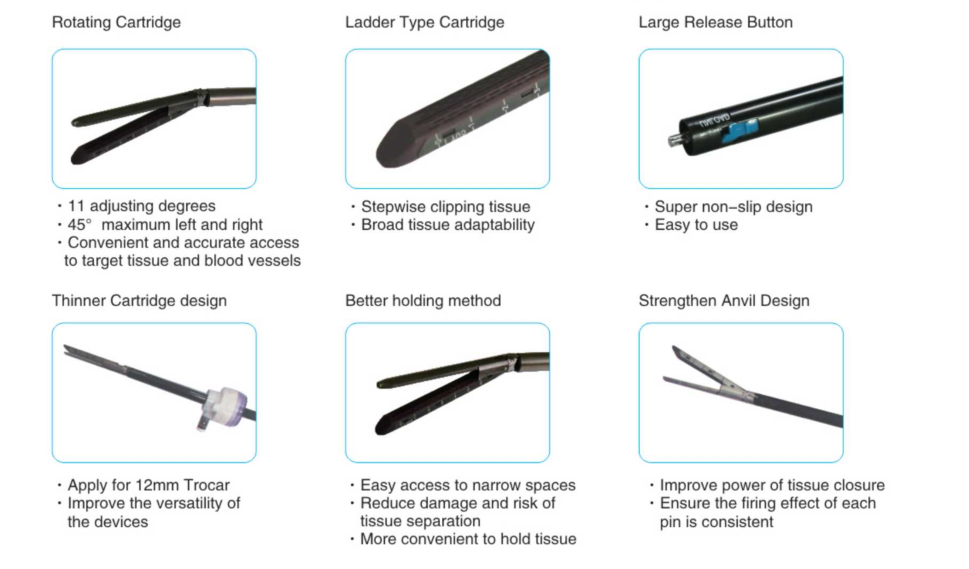

1、Gentle tissue compression before firing minimises tissue trauma and supports repositioning.
2、Cutting knife housed within the reloading unit guarantees even distance between anvil and cartridge as it passes through the tissue for consistent, leak free staple formation.
3、Cartridge lock out safety mechanism prevents use of fired reloading units.
4、Strong, thin anvil for simple and easy insertion.
| Product name | Type | length（MM） | Tolerance（mm） |
| handle | H--ED12-S | 60 | ±2.0 |
| H--ED12-C | 155 | ||
| H--ED12-L | 240 |
| Type | Cutting and Suturing length | Application | Height of pins(mm) |
| H--CCS30-W | 30mm | Thin tissue | 2.5/2.5/2.5 |
| H--CCS30-B | 30mm | Normal thickness tissue | 3.5/3.5/3.5 |
| H--CCS45-W | 45mm | Thin tissue | 2.5/2.5/2.5 |
| H--CCS60-W | 60mm | Thin tissue | 2.5/2.5/2.5 |
| H--CCS45-B | 45mm | Normal thickness tissue | 3.5/3.5/3.5 |
| H--CCS45-G | 45mm | Thick tissue | 4.8/4.8/4.8 |
| H--CCS60-B | 60mm | Normal thickness tissue | 3.5/3.5/3.5 |
| H--CCS60-G | 60mm | Thick tissue | 4.8/4.8/4.8 |
| Type | Cutting and Suturing length | Application | Height of pins(mm) |
| H--CCR30-W | 30mm | Thin tissue | 2.5/2.5/2.5 |
| H--CCR30-B | 30mm | Normal thickness tissue | 3.5/3.5/3.5 |
| H--CCR45-W | 45mm | Thin tissue | 2.5/2.5/2.5 |
| H--CCR60-W | 60mm | Thin tissue | 2.5/2.5/2.5 |
| H--CCR45-B | 45mm | Normal thickness tissue | 3.5/3.5/3.5 |
| H--CCR45-G | 45mm | Thick tissue | 4.8/4.8/4.8 |
| H--CCR60-B | 60mm | Normal thickness tissue | 3.5/3.5/3.5 |
| H--CCR60-G | 60mm | Thick tissue | 4.8/4.8/4.8 |
| Type | Cutting and Suturing length | Application | Height of pins(mm) |
| H--CCR30-T | 30mm | Normal Thin tissue | 2.0/2.5/3.0 |
| H-CCR30-P | 30mm | Thick tissue | 3.0/3.5/4.0 |
| H-CCR45-T | 45mm | Normal Thin tissue | 2.0/2.5/3.0 |
| H-CCR60-T | 60mm | Normal Thin tissue | 2.0/2.5/3.0 |
| H-CCR45-P | 45mm | Thick tissue | 3.0/3.5/4.0 |
| H-CCR60-P | 60mm | Thick tissue | 3.0/3.5/4.0 |
| H-CCR45-N | 45mm | Extra thick tissue | 4.0/4.5/5.0 |
| H-CCR60-N | 60mm | Extra thick tissue | 4.0/4.5/5.0 |

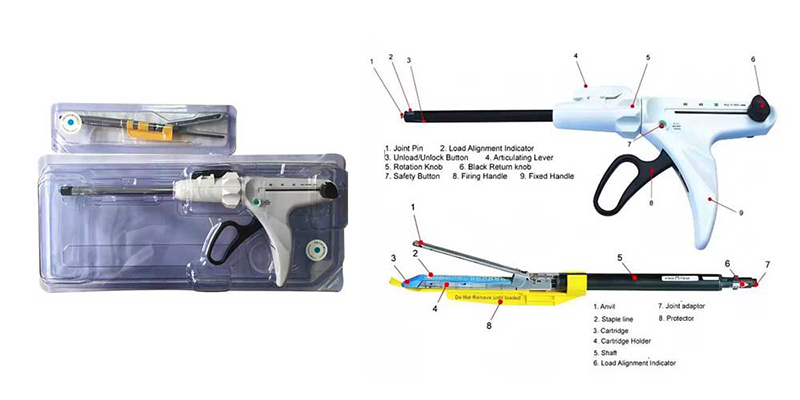

The disposable linear cutting stapler consists of the following components:
1. Knife head component:includes a cutting edge and an operating handle. When cutting,the operating handle is pressed down to complete the surgical operation through the cutting edge.
2. Matching components:including matching hooks and bearings. When matching,the two end tissues are pulled to the hooks,and the bearings rotate and insert into the corresponding slots to complete the matching.
3. Control components:including triggers and control switches,the triggers are used to initiate the surgical process,and the control switches are used to adjust the cutting speed.
Intelligent Stapling Technology
3 rows of different heights of pins
New choices of cartridges
Same height pins in traditional cartriridges
Defects of traditional devices
More blood-supply--Less fistulamore bleeding
Less blood-supply--Less bleedingmore fistula
Traditional cartridges with poor adaptability can cause
suture failure
Solution
Loosening outside-Better blood-supply
Dynamic inside-Less bleedingheal faster
Innovative structure of cartridges
Three different heights of staple design
